Ford Transit Custom Kombi 320 L1H1 Trend

V20010B01

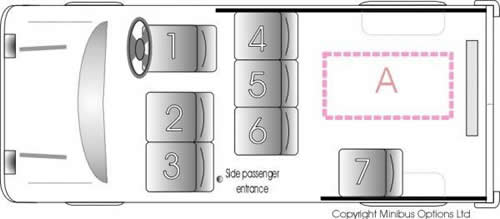

V20010B01 Seatplan
V20010B01
V20010B01
V20010B01
V20010B01
Cab passengers:
2
Saloon seats:
4
Total capacity:
7
Wheelchairs:
1
Passenger access:
Standard
Wheelchair access:
Internal ramp
Engine variant:
Euro 6
Gearbox
Manual
Reference: V20010B01 Categories , , ,

Additional features
Type Approval certification
Electrical
TomTom Start 25 Sat Nav with 5″ screen
Glazing and Ventilation
Bodyside glazing of toughened safety glass, as standard to base vehicle
Interior Lining
Ford standard soft trim saloon headlining and window surrounds with trim boards to lower bodysides
Lighting
Saloon lighting as standard to base vehicle
Seating
Retrim Driver Seat
Retrim Double Cab Passenger Seat
Retrim Single Cab Passenger Seat
Lap and diagonal inertia reel restraint to each passenger seat
Vinyl trim to saloon seats

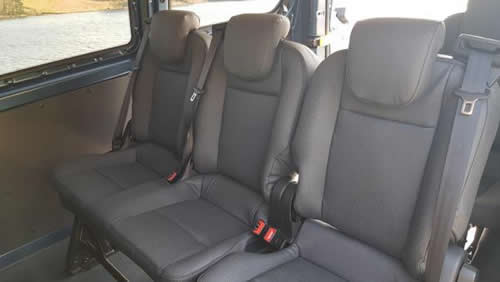

Semi-highback seats with upholstered headrest
One Ford double seat is removed to accommodate a permanent wheelchair position
Wheelchair Access
Wheelchair ramp, providing full width platform. Folds in half to stow upright inside rear doors, with drop down panel to improve rear vision
Electric winch to assist wheelchair loading
Wheelchair Provision
Wheelchair fittings
Floor pan to provide permanent wheelchair position including 4 point restraints and passenger belt with high level fixing





    Saloon length (mm)Int. Height (mm)Int. Width (mm)Ext. Width (mm)Ext. Length (mm)Ext. Height (mm)
    255514061775198649731979
