Ford Transit L4H3

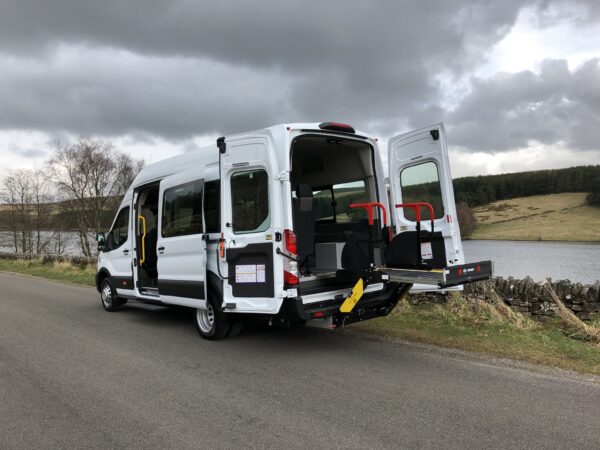

V20661A01 Rear three quarter everything deployed

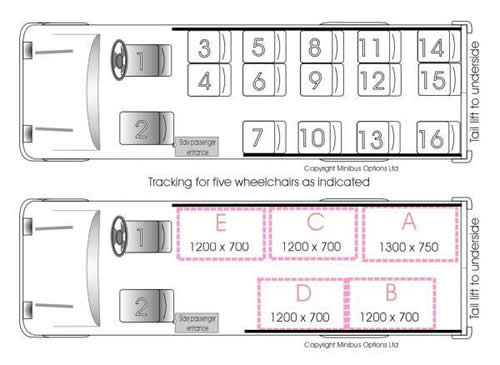

V20661A Seatplan

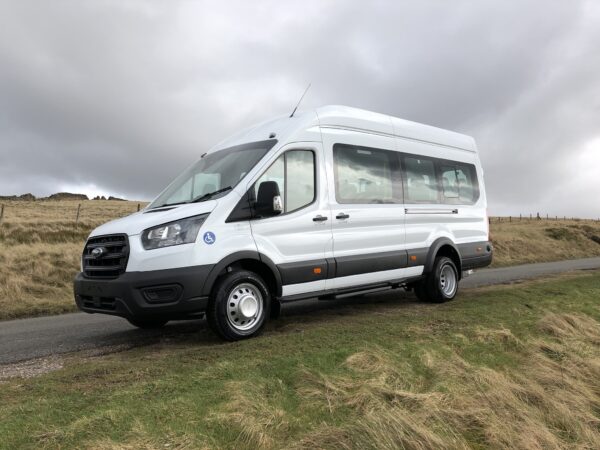

V20661A01 Front three quarter

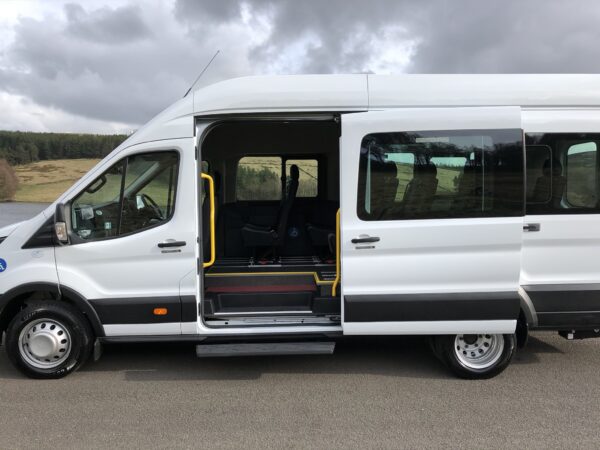

V20661A01 Side view

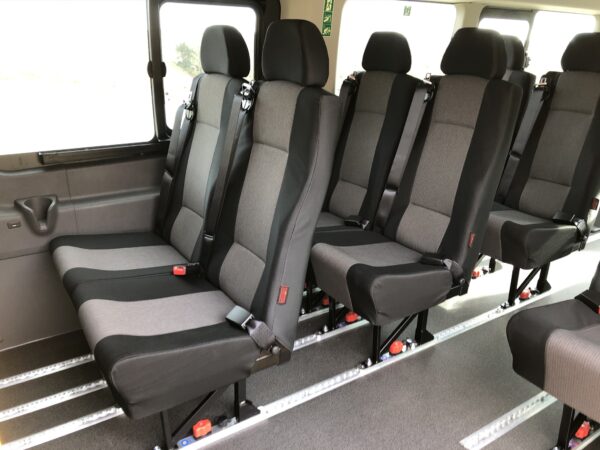

V20661A01 Seats

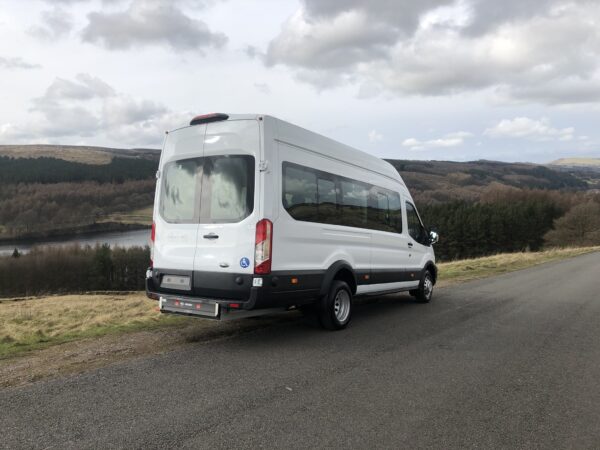

V20661A01 Rear three quarter
Cab passengers:
1
Saloon seats:
14
Total capacity:
16
Wheelchairs:
5
Wheelchair access:
Underfloor lift
Engine variant:
Euro 6
Reference: V20661A01 Categories , ,

Additional features
Break-glass hammer(2)
First aid Kit
Second .9ltr AFFF foam fire extinguisher
Type Approval certification
Chassis
Saloon wheelboxes reduced in height to suit
Electrical
Parking sensors to front and rear
Reverse bleeper with double engage over ride
Floor and tracking
Saloon floor overlaid in slip resistant safety flooring, edged all round
Saloon floor raised to eliminate the wheelboxes
Tracking system to provide certified floor for Type Approval
Glazing and Ventilation
Bodyside glazing of toughened safety glass, as standard to base vehicle, including two opening units each side, tinted
Glass panel escape hatch
Handrails
Grab handle to nearside cab door
Vertical handrail, Yellow, to both sides at side door
Interior Lining
Ford standard soft trim saloon headlining and window surrounds with trim boards to lower bodysides
Remove non-AC luggage racks and make good
Lighting
Saloon lighting as standard to base vehicle
Seating
Lap and diagonal inertia reel restraint to each passenger seat
Saloon seats trimmed in cloth to match drivers seat
Seat plan is modified to provide 14 removable track mounted single seats to allow up to five occupied wheelchairs
Semi-highback seats with upholstered headrest
Stowage
Wheelchair equipment stowage large
Wheelchair Access
Electro hydraulic tail lift, with power-out / power-in feature, to underside of rear entrance
Wheelchair Provision(5)
