MAN TGE 3.140 Long

V20058D01

Cab passenger seats:
1
Saloon passengers:
12
Wheelchair passengers:
1
Total capacity:
14
Passenger access:
manual-cassette-step
Wheelchair access:
internal-lift

Description

Additional features
.9ltr AFFF foam fire extinguisher
Break-glass hammer(2)
First aid Kit
Type Approval certification
Electrical
HD Witness camera with micro SD card(3)
Reversing bleeper engaged by selection of reverse gear
Short delay over ride to reversing bleeper
Floor and tracking
Rubber insert for tracking
Saloon floor overlaid in slip resistant safety flooring, edged all round
Tracking system to provide certified floor for Type Approval
Glazing and Ventilation
Bodyside glazing of toughened safety glass, as standard to base vehicle
Coach style 3 way adjustable roof vent, glass panel, 500mm x 500mm(1)
Coach style 3 way adjustable roof vent, glass panel, 900mm x 500mm(1)
Handrails
Folding handrail to vehicle exterior at side door(1)
Full height handrail to assist entry at passenger entrance
Grab handle to nearside cab door
Half height rail with screen below to passenger entrance
Weather screen at side door
Heating
2kw diesel fired heater to rear saloon
Interior Lining
Glass wool insulation to all cavities formed behind lining panels
Headlining centre relief panel trimmed to match saloon seats
Standard interior lining
Wipe clean panel lower bodyside
Lighting
Loading light(1)
Saloon LED lights, switched from the cab
Scenelight(1)
Step courtesy lights, LED

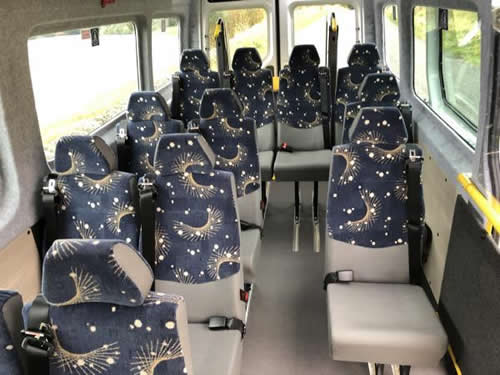

Seating
"All ages/Generation" lap and diagonal inertia reel restraint to each saloon passenger seat
Driver and cab passenger seats remain in standard cloth trim
Moquette to backrest with vinyl to cushion & lower backrest, to saloon seats
Saloon seat, Double M2 certified semi highback, individually contoured(4)
Saloon seat, Single M2 certified semi highback, individually contoured(4)

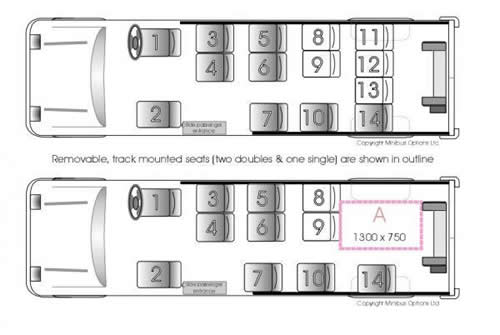

The quantity of seats that are removable, track mounted with anti-rattle seat locking devices(3)
Trimmed headrests to saloon seats
Stowage
Adjustable strap to secure loose items to tracking(2)
Open luggage rack above saloon windows(1)
Surface mounted tracking to the bodyside to suit the stowage of a folded wheelchair / walking frame

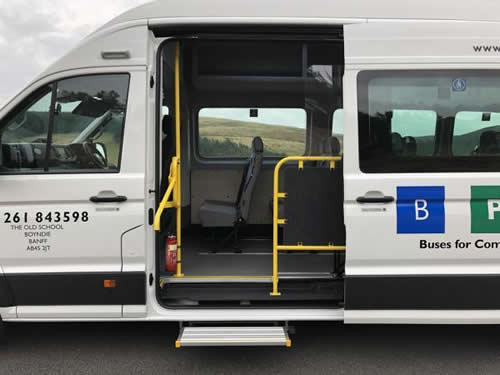

Walk-in entrance
Manually operated step mounted below the entrance. A buzzer to warn if step deployed.(1)
Step edges highlighted to aid partially sighted
Wheelchair Access

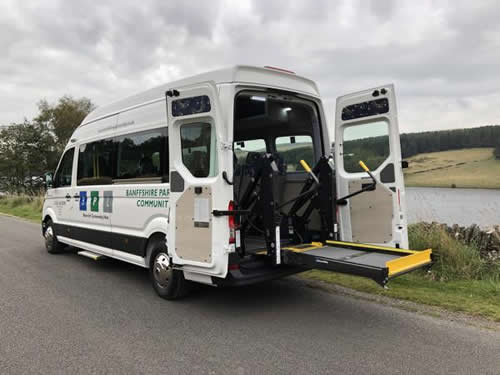

Electro-hydraulic tail lift to rear entrance, internal, automatic operation from hand control
Wheelchair Provision(1)
Wheelchair fittings
Unwin Quattro wheelchair 4-point webbing restraints, with cassette & karabiner all round(1)
Wheelchair passenger double inertia split reel restraints, track fixing(1)
